Off-line, Non-destructive Leak Testing of Individual Packs

  • Very sensitive optical sensor
  • Highly effective for detecting micro- leaks
  • Fast paybacks on investment through the fast identification of leaking packs leading to the optimization of the packaging process
  • Reduce waste, reduce returns, reduce rework and reduce loss of machine time.

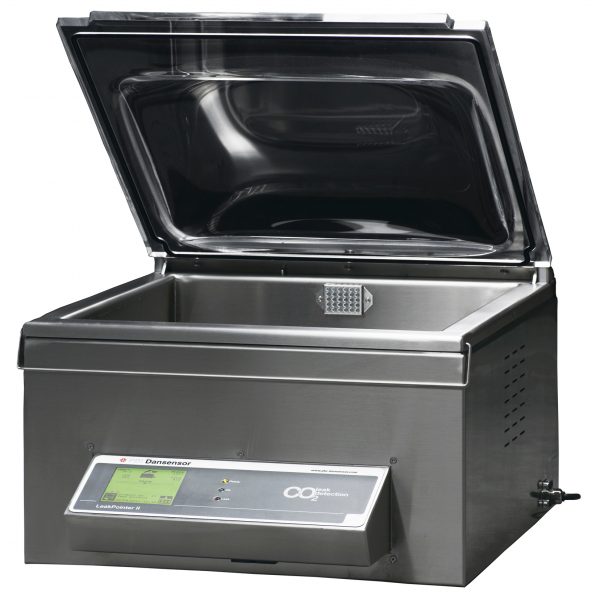

The Dansensor® LeakPointer II is a compact off-line leak system, with an optical sensor, that offers the possibility of monitoring individual packs, or small groups of packs. By using the CO2 MAP gas as a trace gas, it’s possible to test packages shortly after being produced. The resultant real time information enables the optimization of the packaging process, to progressively improve overall packaging performance.

Operation

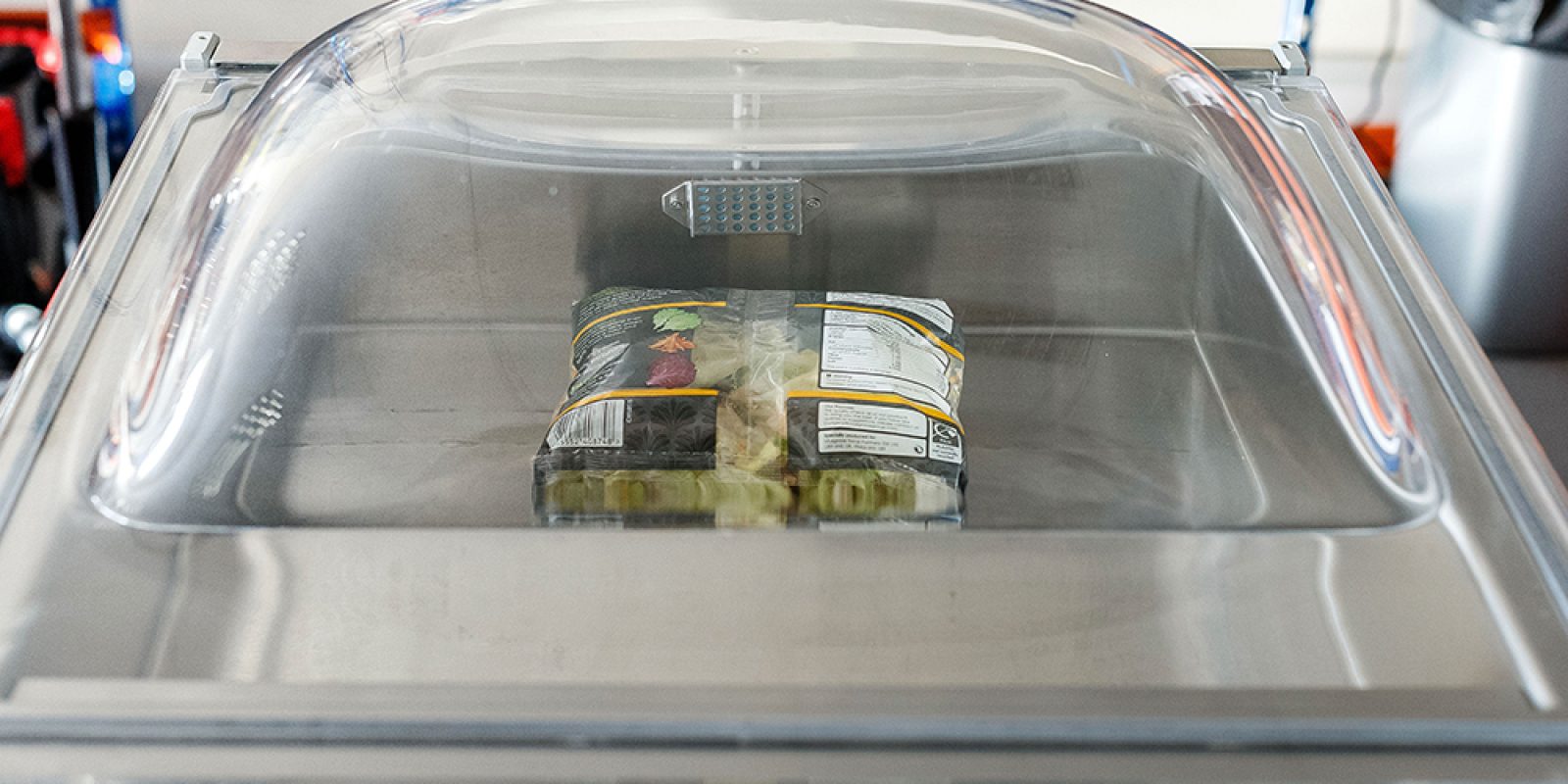

This test method is non-destructive and it’s possible to test a pack, or a number of packs at one time. The package is placed inside the Dansensor® LeakPointer II test chamber, and a user-defined vacuum is created, to establish a pressure difference between the inside of the package and the test chamber. This causes CO2 from the package to enter the test chamber through even the smallest leak.
A highly sensitive sensor measures all changes in the CO2 content and will detect even micro leaks. A visual & audible alarm are triggered when a leak is detected.

Test results are stored for subsequent export, or download.

Benefits of the Dansensor® LeakPointer II:
* Test information for the optimization of the packaging process
* Non-destructive testing
* Reduced risk of cross contamination (compared to traditional water bath)
* Testing is operator independent
* Detects package leaks
* Quality control of seal integrity to ensure product shelf life
* Minimizes the risk of expensive product recalls due to leaking packages
* Discover mechanical packaging machine errors instantly

Optical sensor No heating time
Data logging & export of test data Product programs can be selected via bar code
Fast testing cycle (< 30 sec) Start-up time 1 minute after power on standby
3 year carbon dioxide warranty Test pressure down to 200 mbar absolute
500 test programs Full comissioning, set up & training given as standard
Connections: x2 RS232 for printer, bar code scanner and PC connection Easy operation via touch screen
Compact - supplied with trolley CE compliant
Variety of post-installation technical support packages Ideal for laboratory & production areas
Max Product Size 400 x 500 x 115
Power supply 230 V
Dimensions 730 x 620 x 460 (DWH)
