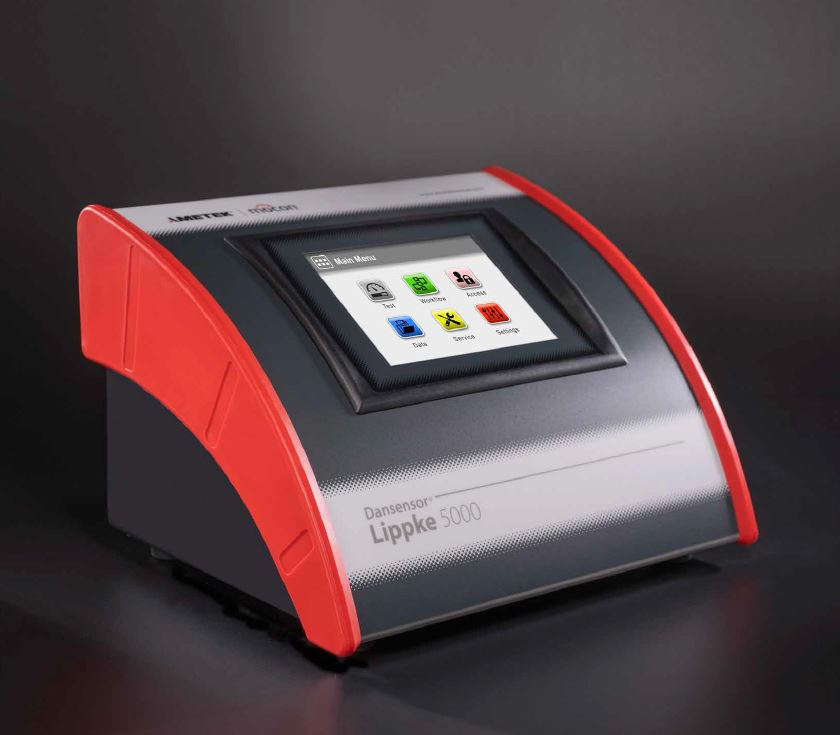

Dansensor Lippke 5000
Benchtop Seal Integrity Tester
The Dansensor® Lippke 5000 measures the seal strength and package integrity of rigid, flexible, porous and laminated foil in settings including MAP, vacuum and skin packaging.
Standards: ASTM F-1140, F-2054, F-2095, ISO 11607
The unit supersedes the now obsolete Lippke 4000/4500. The Dansensor Lippke 5000 offers shorter fill times, higher pressures and minimised overshoots.
Data import and export is via an integrated USB port, cloning back up functions and optional extras, including a bar code scanner and printer. The Dansensor Lippke 5000 also has data graphing and statistical analysis capabilities. Tests include:
- Burst Test – complies with ASTM F1140 (unrestrained) and ASTM F2054 (with restraining plates)
- Leak Test – pressure management and leakage testing to ASTM F2095
- Creep Test – creep and creep to fail complies with ASTM F1140
- Combined Test – a combination of up to three different test types in the same package. Reduces the number of samples destroyed. Requires a PC software option.
- Bubble Test – package is placed in water, pressurised to a predefined pressure and held for a predetermined time.
| Features | |
|---|---|
| Improved measuring algorithm | Test heads with integrated sense probe |
| Touch screen with multilingual GUI | Data capture, storage and export |
| USB port for optional bar code scanner, label printer and keyboard | Compliant with ASTM and ISO Standards |
| PC software option | 1-5 bar pressure range |
| IQ/OQ available |
| Package Types | Flexible, semi-rigid, ridged |
| Test Types | Burst, leak, creep, bubble, combined test |
| Test Package Size | 1 - 90,000 ml |
| Test Time | 1 - 500 seconds |
| Measuring Range | 10 - 5000 mbar (0.15 - 72.5 psi) |
| Low Range 10 - 350 mbar (0.15 - 5.0 psi) | |
| High Range 350 - 5000 mbar (5.0 - 72.5 psi) | |
| Display Resolution | 0 - 1000 mbar: 0.1 mbar 1000 - 5000 mbar: 1 mbar |
| Accuracy of Measurement | Low range: ±0.5 mbar (0.007 psi) or ± 0.5% of reading |
| High Range: ± 5 mbar (0.07 psi) or ± 0.5% of reading | |
| Number of Test Definitions | 300 |
| Data Collection Capacity | Test data from more than 1,000,000 tests |
| Data Collection Type | Export to csv file |
| Dimensions (WDH) and weight | 284 x 236.5 x 185 mm (11.2" x 9.3" x 7.3") 3.4kg (7.5lb) |
| IP Class | IP 20 |
| Ambient Temperature | Operational +2°C to +35°C Storage -20°C to +60°C |
| Relative Humidity | +2°C to +25°C: 10 to 90% (non condensing) |
| +25°C to +30°C: 10 to 70% RH (non condensing) | |
| +30°C to + 35°C: 10 to 50% RH (non condensing) | |
| Ambient Pressure | 900 - 1050 mbar |
| Power Supply and Consumption | 100 - 240 VAC, 47 - 63 Hz Max 40W |
| Air Supply Pressure & Connection | 4.0 - 6.5 bar; at least 1 bar above the test pressure Φ6/4 mm tube DIN ISO 8573-1:2010[F4:4:3] |
| Air Consumption | Max 100 L/min (depending on test settings) |
| Connectivity | LAN: RJ-45 Ethernet 10/100 Mbit/s, DHCP client or fixed IP |
| USB: 1 x Host, USB 2.0 Type A, 1 x Device, USB 2.0 Type B (max current 500 mA) | |
| Compliance | CE . China RoHS II |
| Standards | ASTM F-1140, F-2054, F-2095, ISO 11607 |
